Step 3: Routing Peers

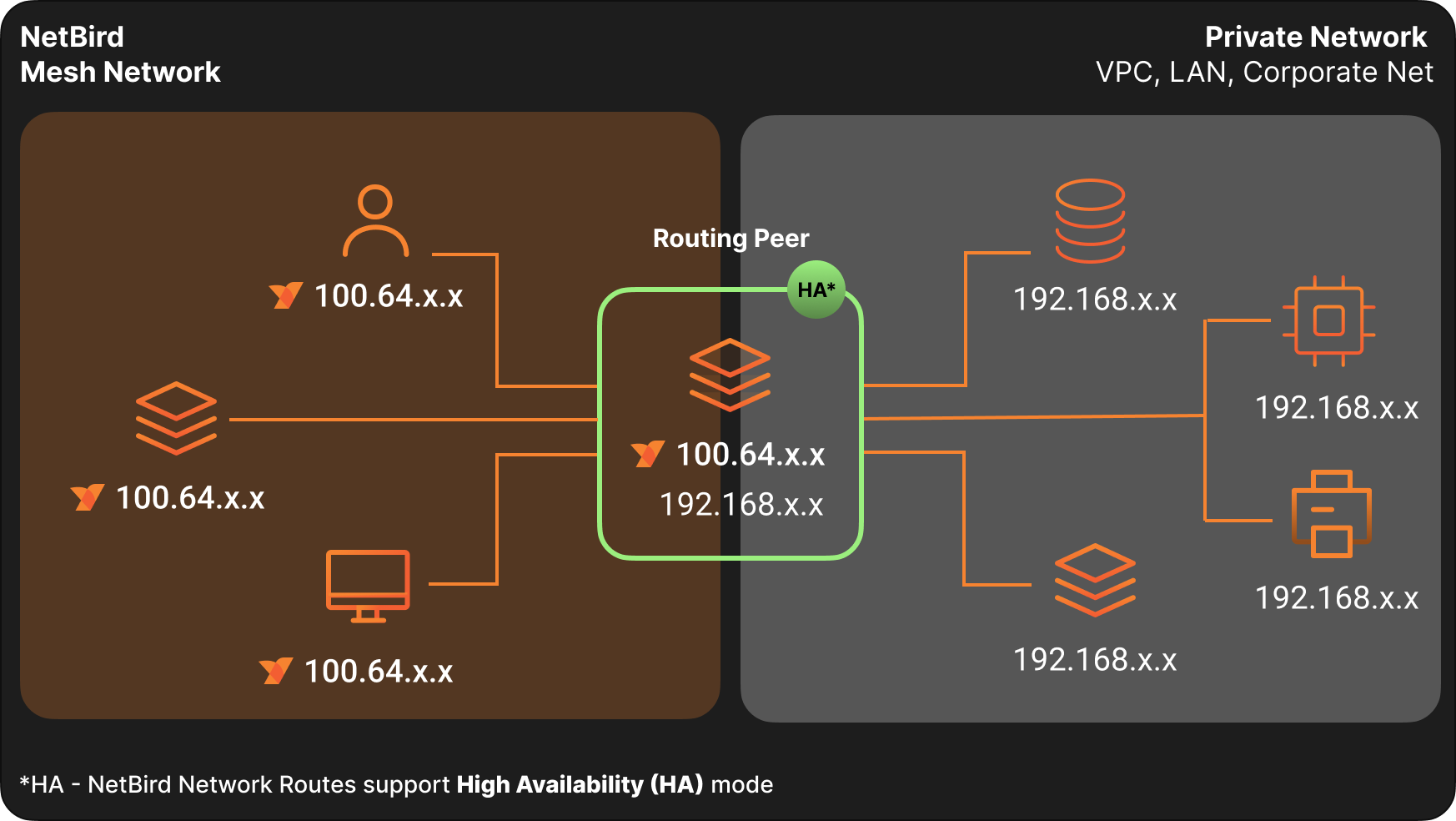

Routing peers are NetBird-connected VMs that forward traffic between the WireGuard mesh and your on-premises LANs. Remote users connect to the routing peer over NetBird, and the routing peer forwards packets into the local network.

Site Summary

Site	Subnet	Routing Peer Name	IP	Hyper-V Host (Primary)	Hyper-V Host (HA)
Honolulu	10.100.7.0/24	gsi-nb-hnl-01	10.100.7.50	DATA003	DATA004
Boulder	10.15.0.0/24	gsi-nb-bld-01	10.15.0.50	DATA001	DATA007

Key servers accessible through these routes:

Honolulu: AD0 (10.100.7.10), AD1 (10.100.7.11), FILES (10.100.7.15), SAGE (10.100.7.40)

Boulder: AD1 (10.15.0.10), AD2 (10.15.0.11), Zabbix (10.15.0.34)

3.1 Create Setup Keys

Create two setup keys in the NetBird Dashboard — one for each site’s routing peer group.

1. Sign in to https://netbird.gsisg.com
2. Go to Setup Keys > Create Setup Key

Honolulu Setup Key

Field	Value
Name	Honolulu Routing Peers
Type	Reusable
Usage Limit	3 (primary + HA + spare)
Expires	30 days from now
Auto-assigned groups	Create new group: HNL-Routing-Peers
Disable login expiration	Yes (routing peers must stay connected without user login)

Click Create Setup Key and copy the key immediately.

Boulder Setup Key

Repeat the process:

Field	Value
Name	Boulder Routing Peers
Type	Reusable
Usage Limit	3
Expires	30 days from now
Auto-assigned groups	Create new group: BLD-Routing-Peers
Disable login expiration	Yes

Copy the key immediately.

Caution

Setup keys are shown only once at creation time. If you lose a key, you must create a new one.

3.2 Create the Hyper-V VMs

Create a lightweight Ubuntu 24.04 LTS VM on Hyper-V at each site. Routing peers do not need significant resources.

VM Specifications

Setting	Value
OS	Ubuntu Server 24.04 LTS
vCPU	2
RAM	2 GB (static)
Disk	20 GB
Network	Connected to the production VLAN
IP	Static (see site summary table above)
Gateway	Site default gateway
DNS	Site domain controllers

Honolulu VM: gsi-nb-hnl-01

• Host: DATA003 (HA peer on DATA004)
• IP: 10.100.7.50/24
• Gateway: 10.100.7.1
• DNS: 10.100.7.10, 10.100.7.11

Boulder VM: gsi-nb-bld-01

• Host: DATA001 (HA peer on DATA007)
• IP: 10.15.0.50/24
• Gateway: 10.15.0.254
• DNS: 10.15.0.10, 10.15.0.11

3.3 Install NetBird on the Routing Peers

SSH into each VM and run the following commands.

On gsi-nb-hnl-01 (Honolulu)

# Install NetBird
curl -fsSL https://pkgs.netbird.io/install.sh | sh

# Connect using the Honolulu setup key
sudo netbird up \
  --setup-key <HONOLULU_SETUP_KEY> \
  --management-url https://netbird.gsisg.com

# Verify connection
sudo netbird status

On gsi-nb-bld-01 (Boulder)

# Install NetBird
curl -fsSL https://pkgs.netbird.io/install.sh | sh

# Connect using the Boulder setup key
sudo netbird up \
  --setup-key <BOULDER_SETUP_KEY> \
  --management-url https://netbird.gsisg.com

# Verify connection
sudo netbird status

Expected output should show Management: Connected and Signal: Connected.

Enable Auto-Start

sudo systemctl enable netbird

Enable IP Forwarding

Routing peers must forward packets between the NetBird interface and the local LAN. Run on both VMs:

# Enable immediately
sudo sysctl -w net.ipv4.ip_forward=1

# Persist across reboots
echo 'net.ipv4.ip_forward=1' | sudo tee -a /etc/sysctl.d/99-netbird.conf
sudo sysctl --system

3.4 Verify Peers in Dashboard

Open the NetBird Dashboard and go to the Peers tab. You should see both routing peers:

• gsi-nb-hnl-01 with group HNL-Routing-Peers
• gsi-nb-bld-01 with group BLD-Routing-Peers

3.5 Create Network Routes

Go to Network Routes > Add Route to create routes for each site.

Honolulu Network Route

Field	Value
Network identifier	honolulu-lan
Description	Honolulu office LAN (10.100.7.0/24)
Network range	10.100.7.0/24
Routing peer	Select Peer group tab, choose HNL-Routing-Peers
Distribution groups	All (all NetBird peers receive this route)
Access Control Groups	HNL-Routing-Peers
Masquerade	Enabled (in Additional Settings)

Click Add Route.

Boulder Network Route

Field	Value
Network identifier	boulder-lan
Description	Boulder office LAN (10.15.0.0/24)
Network range	10.15.0.0/24
Routing peer	Select Peer group tab, choose BLD-Routing-Peers
Distribution groups	All
Access Control Groups	BLD-Routing-Peers
Masquerade	Enabled

Click Add Route.

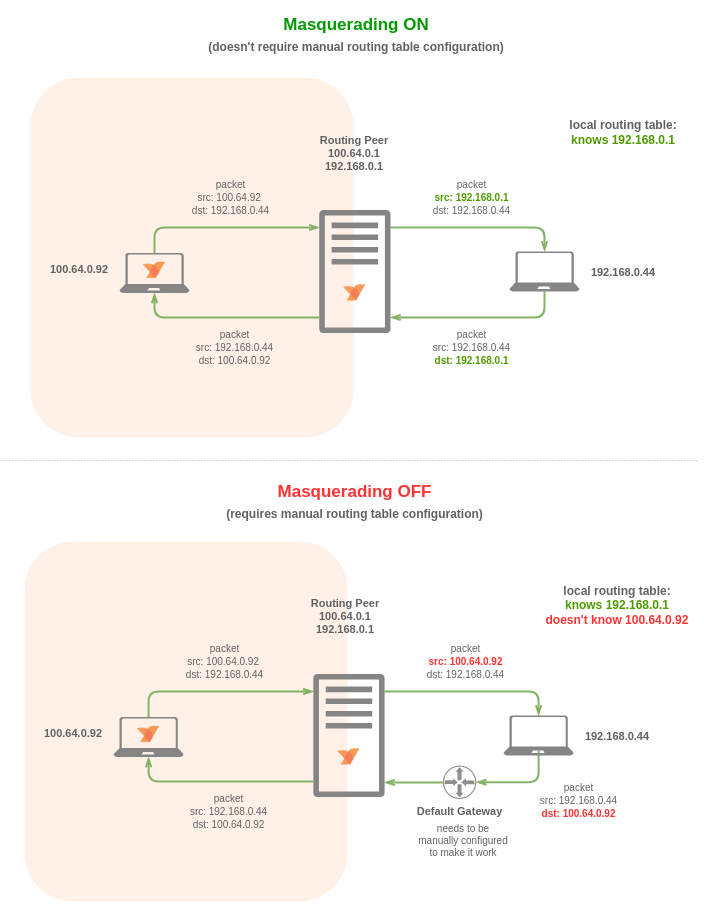

Why Masquerade?

With masquerade enabled, the routing peer performs NAT on forwarded traffic. Office servers see the routing peer’s LAN IP (e.g., 10.100.7.50) as the source, not the NetBird IP. This eliminates the need to add return routes on office routers or servers.

Why Access Control Groups?

By assigning ACL Groups to each route, you can later create fine-grained policies that control which user groups can access which subnets. Without ACL Groups, network routes bypass access control entirely.

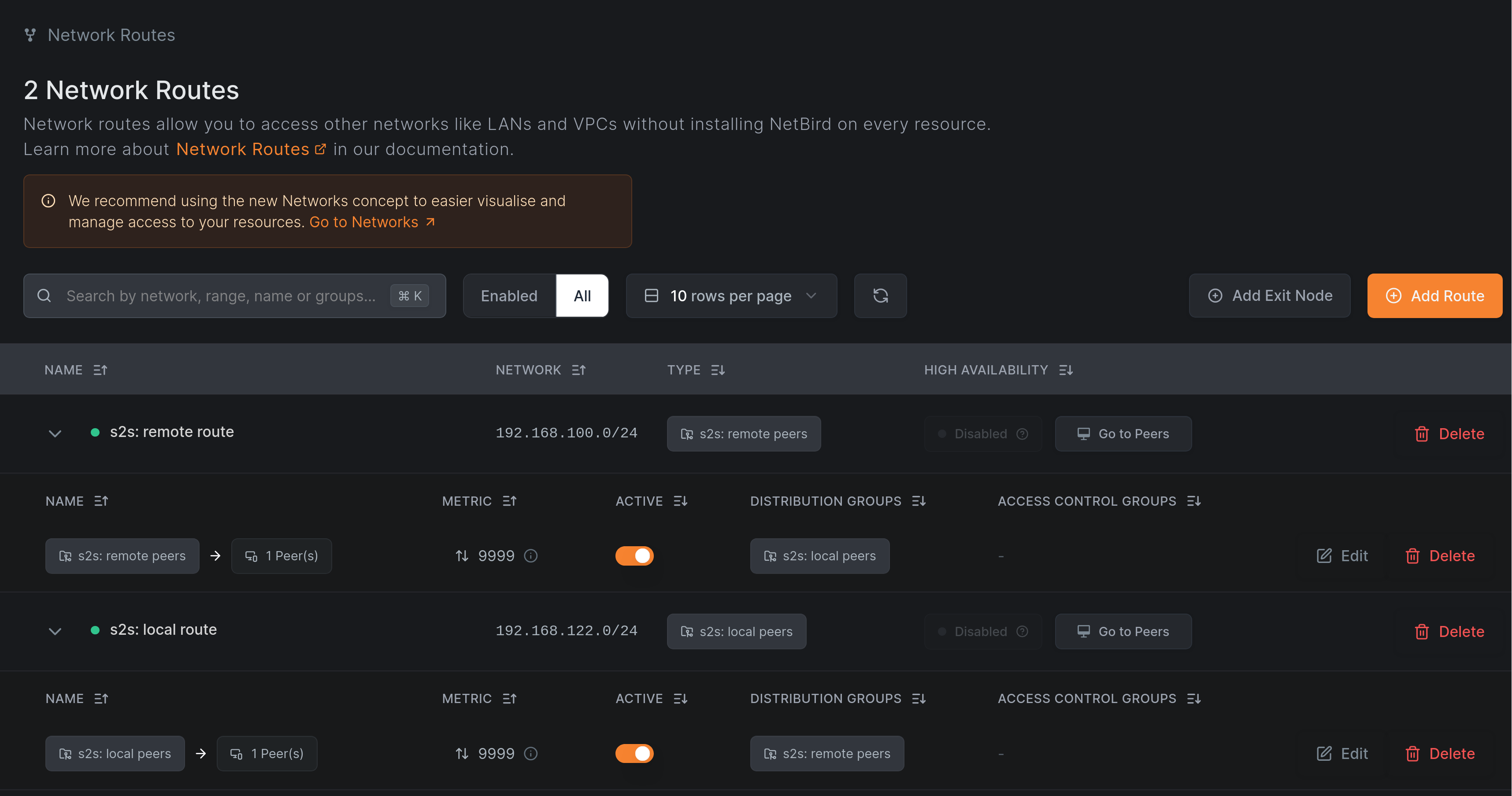

3.6 Create Site-to-Site Routes (Bidirectional)

For direct office-to-office communication (e.g., Boulder AD replicating with Honolulu AD), create cross-site routes.

Boulder-to-Honolulu Route

Field	Value
Network identifier	honolulu-lan (same as above — this creates an HA entry)
Network range	10.100.7.0/24
Distribution groups	BLD-Routing-Peers
Routing peer group	HNL-Routing-Peers
Access Control Groups	HNL-Routing-Peers
Masquerade	Enabled

Honolulu-to-Boulder Route

Field	Value
Network identifier	boulder-lan (same as above)
Network range	10.15.0.0/24
Distribution groups	HNL-Routing-Peers
Routing peer group	BLD-Routing-Peers
Access Control Groups	BLD-Routing-Peers
Masquerade	Enabled

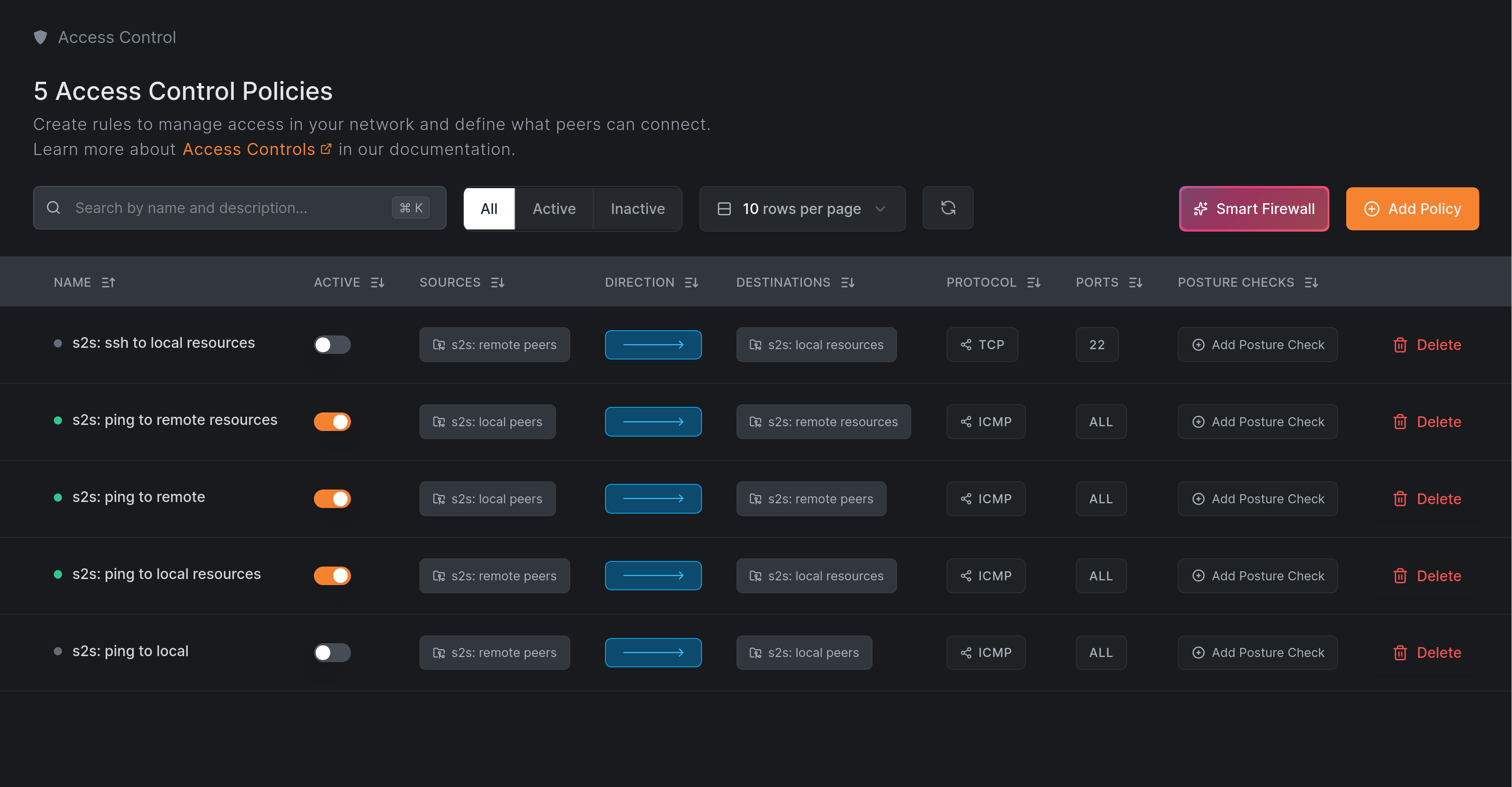

Then create access policies to allow the routing peers to communicate (this is covered in Step 4: Access Policies).

3.7 Optional: Add a Second Routing Peer Per Site

NetBird supports multiple routing peers per route for automatic failover. This protects against a Hyper-V host hardware failure — if DATA003 dies, a second routing peer on DATA004 takes over automatically.

However, this is a lower-priority optimization. Two VMs on the same network share the same internet connection — if the ISP goes down, both go down. The primary resilience comes from having routing peers at both offices, not from duplicating them within one site. Start with one per site and add a second later if needed.

If you do want to add them later:

1. Create a second VM on the alternate Hyper-V host (e.g., gsi-nb-hnl-02 on DATA004, or gsi-nb-bld-02 on DATA007)
2. Install NetBird with the same setup key — it auto-assigns to the same routing peer group
3. Enable IP forwarding
4. Set the primary peer’s metric to 100 and the backup to 200 in the route’s Additional Settings

Verification

At this point you should have:

• Two routing peer VMs running Ubuntu 24.04 with NetBird connected (one per site)
• IP forwarding enabled on all routing peers
• Network route for 10.100.7.0/24 via HNL-Routing-Peers
• Network route for 10.15.0.0/24 via BLD-Routing-Peers
• Masquerade enabled on all routes
• ACL Groups assigned to each route
• Site-to-site cross routes created
• All routing peers visible and connected in the Dashboard

Next Step

Proceed to Step 4: Access Policies to create groups and access control rules.
