Boulder Office

Network Diagram

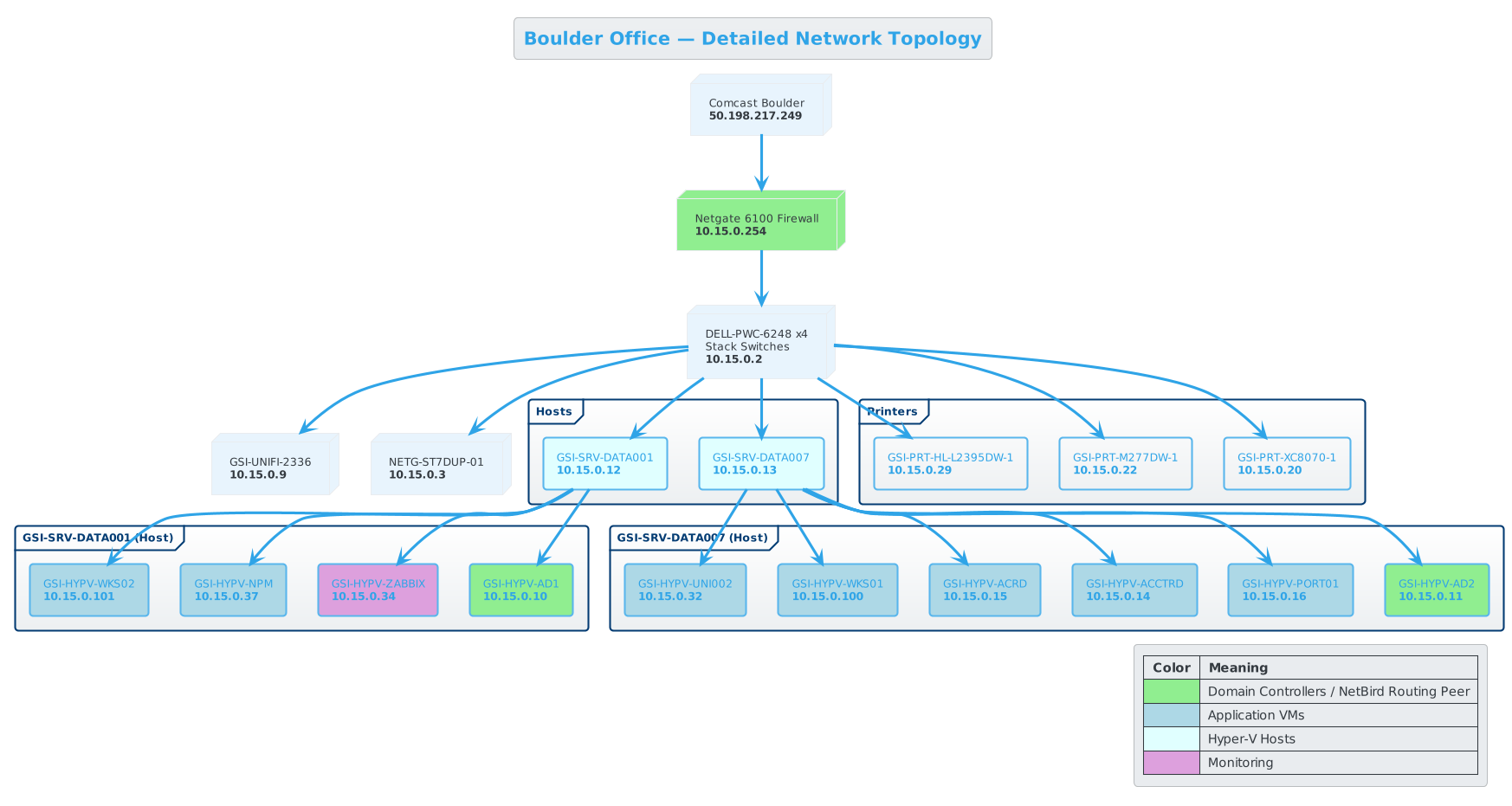

Click image to open full-size in new tab.

Mermaid Source

graph TD
    ISP[Comcast Boulder<br/>50.198.217.249]
    FW[Netgate 6100 Firewall<br/>10.15.0.254]
    Core[DELL-PWC-6248 x4 Stack Switches<br/>10.15.0.2]
    UniFi[GSI-UNIFI-2336<br/>10.15.0.9]
    UPS[NETG-ST7DUP-01<br/>10.15.0.3]

    ISP --> FW --> Core --> UniFi
    Core --> UPS

    subgraph BLD_Hosts["Hosts"]
        DATA001[GSI-SRV-DATA001<br/>10.15.0.12]
        DATA007[GSI-SRV-DATA007<br/>10.15.0.13]
    end

    Core --> DATA001
    Core --> DATA007

    subgraph DATA001_Group["GSI-SRV-DATA001 (Host)"]
        B_AD1[GSI-HYPV-AD1<br/>10.15.0.10]
        B_ZABBIX[GSI-HYPV-ZABBIX<br/>10.15.0.34]
        B_NPM[GSI-HYPV-NPM<br/>10.15.0.37]
        B_WKS02[GSI-HYPV-WKS02<br/>10.15.0.101]
    end

    DATA001 --> B_AD1
    DATA001 --> B_ZABBIX
    DATA001 --> B_NPM
    DATA001 --> B_WKS02

    subgraph DATA007_Group["GSI-SRV-DATA007 (Host)"]
        B_AD2[GSI-HYPV-AD2<br/>10.15.0.11]
        B_PORT01[GSI-HYPV-PORT01<br/>10.15.0.16]
        B_ACCTRD[GSI-HYPV-ACCTRD<br/>10.15.0.14]
        B_ACRD[GSI-HYPV-ACRD<br/>10.15.0.15]
        B_WKS01[GSI-HYPV-WKS01<br/>10.15.0.100]
        B_UNI002[GSI-HYPV-UNI002<br/>10.15.0.32]
    end

    DATA007 --> B_AD2
    DATA007 --> B_PORT01
    DATA007 --> B_ACCTRD
    DATA007 --> B_ACRD
    DATA007 --> B_WKS01
    DATA007 --> B_UNI002

    subgraph BLD_Printers["Printers"]
        PB1[GSI-PRT-XC8070-1<br/>10.15.0.20]
        PB2[GSI-PRT-M277DW-1<br/>10.15.0.22]
        PB3[GSI-PRT-HL-L2395DW-1<br/>10.15.0.29]
    end

    Core --> PB1
    Core --> PB2
    Core --> PB3
